SMS Notifications – Configuration & API Guide

This document describes how to configure SMS Notifications on the system and how to use the SMS Notifications API.

SMS Notifications allow the system to send automated SMS alerts for specific events, such as new voicemail notifications. Messages are sent from a configured SMS-capable number and can be triggered either by system events or via API calls.

Configuration

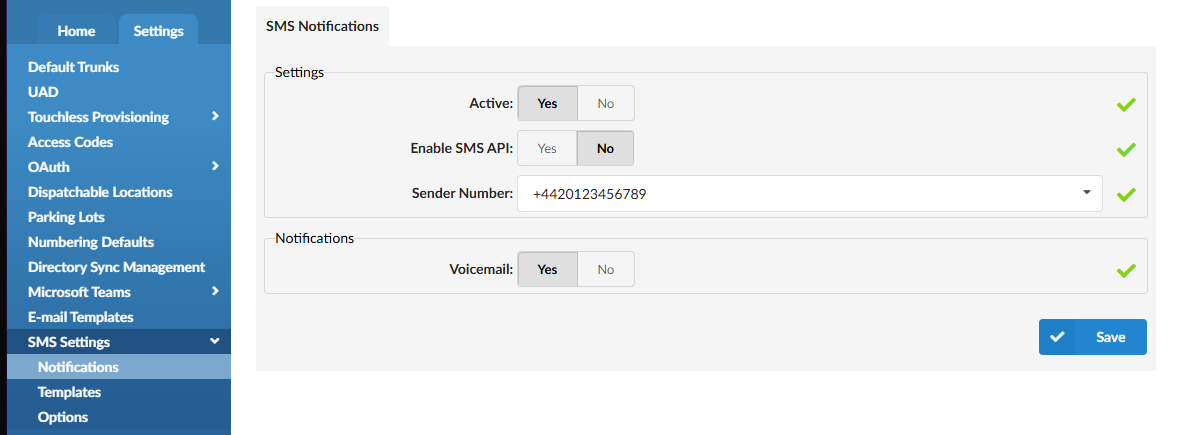

To configure SMS notifications on your system, navigate to the designated Tenant →  Settings → SMS Settings → Notifications

To enable SMS notifications set option Active to Yes

• Yes – SMS notifications are enabled.

• No – SMS notifications are disabled.

Note:

• No SMS notifications will be sent unless this option is set to Yes.

Sender Number

• This field must be populated.

• The selected number must be a valid SMS-enabled number on the system.

Note:

• All SMS notifications (system or API-triggered) are sent from this number.

• SMS delivery will fail if the sender number is missing or invalid.

Notification Types

Currently SMS notifications can be configured only for Voicemails.
When enabled, sends an SMS notification whenever a new voicemail is received on an extension.

• Yes – SMS notification is sent for new voicemails.

• No – Voicemail SMS notifications are disabled.

Requirements:

• SMS Notifications must be Active.

• A valid Sender Number must be configured.

• The extension must have a valid SMS number assigned.

Per-Extension SMS Notifications Configuration

SMS Notifications also include a per-extension enhanced service. This allows SMS notifications to be enabled or disabled individually for each extension.

When enabled, SMS notifications will follow the global SMS Notifications configuration.

SMS number must be set and will define the destination number for SMS notifications sent to the selected extension.

SMS Notifications API

Before using the API:

• SMS Notifications must be Active

• Enable SMS API must be set to Yes

• A valid Sender Number must be configured

• The API key must allow SMS actions

Authentication

All API requests must include a valid API key.

Example Header:

X-API-Key: YOUR_API_KEY Content-Type: application/json

API Examples

PBXware uses an action-based HTTP API where parameters are passed via query string (GET or POST).

API

Example 1: Send SMS Message (API)

Action:

action=pbxware.sms.send_message

Required Parameters:

• apikey – API key with SMS permissions

• server – Tenant ID

• to_number – Destination number in +E.164 format

• body – Message body (Base64 encoded)

Example Request:

https://pbx.example.com/?apikey=YOUR_API_KEY&action=pbxware.sms.send_message&server=59&to_number=%2B14165551234&body=WW91IGhhdmUgcmVjZWl2ZWQgYSBuZXcgdm9pY2VtYWlsLg==

Decoded Message Body:

You have received a new voicemail.

Notes:

• The SMS is sent from the Sender Number configured in SMS Settings → Notifications.

• The request will fail if the Sender Number is missing or invalid.

Example 2: Voicemail SMS Notification (System-Triggered)

Voicemail SMS notifications are automatically sent when:

• SMS Notifications are Active

• Voicemail notification is enabled

• The extension has a valid SMS number

No API call is required for this scenario.

Error Codes

SMS API Disabled

Response:

{  "error": "SMS API is disabled" }

{"error":"Action sms_message returned with error: ERR: SMS not enabled for this tenant: "}

Invalid Sender Number

Response:

{  "error": "Invalid or missing sender SMS number" }

cURL Examples

Send SMS

curl -X POST https://pbx.example.com/api/sms/send \  -H "X-API-Key: YOUR_API_KEY" \  -H "Content-Type: application/json" \  -d '{    "to": "+14165551234",    "message": "Test SMS notification"  }'

Voicemail Notification via API

curl -X POST https://pbx.example.com/api/sms/notifications/voicemail \  -H "X-API-Key: YOUR_API_KEY" \  -H "Content-Type: application/json" \  -d '{    "extension": "1001",    "message": "New voicemail received"  }'

Error Codes

SMS API Disabled

Response:

{  "error": "SMS API is disabled" }

Invalid or Missing Sender Number

Response:

{  "error": "Invalid or missing sender SMS number" }

No SMS Number Assigned
Response:

{  "error": "Destination does not have an assigned SMS number" }
